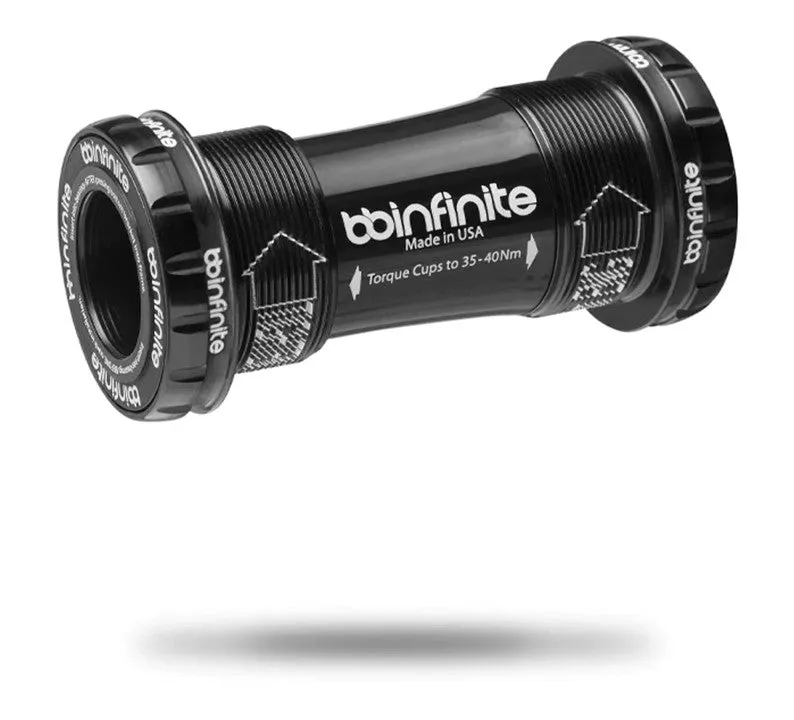

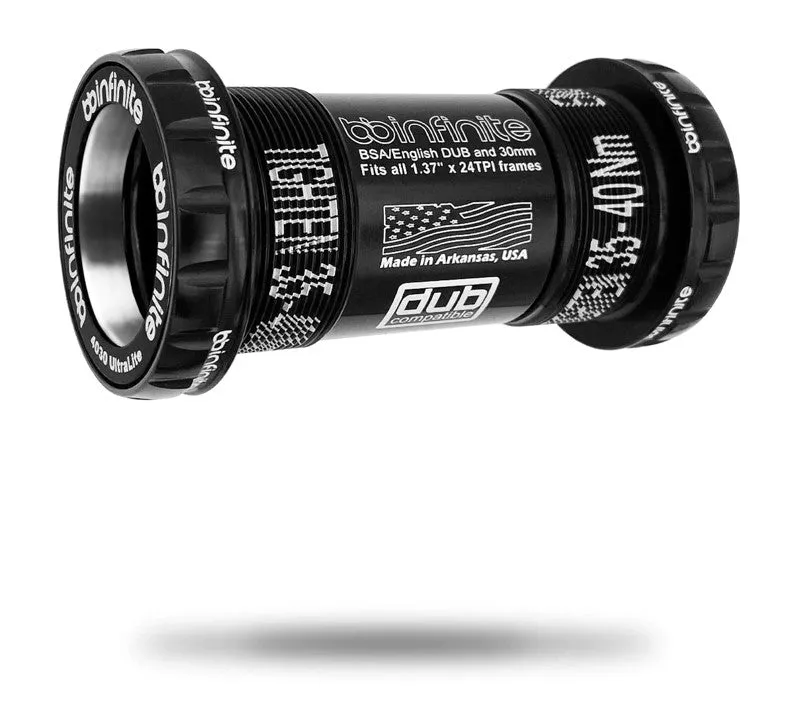

BSA ENGLISH THREADED FOR 30MM ROAD SPINDLES ULTRA-LITE BOTTOM BRACKET

BENG-PF-RD-BLK-ASMCT

The BBInfinite Ultra-Lite Road Threaded BB System works with any long-pattern 30mm spindle road crank set on the market such as a Sram Red BB30/PF30 crank, Lightening, THM Clavicula, Rotor 3D , FSA 386 Evo, and Easton EC90, just to name a few.

Weighing in at a skimpy 71 grams for the set, the BBInfinite Ultra-lite bottom bracket system delivers smooth, quiet, durable performance in an ultra compact form factor that allows maximum clearance for power meter back plates.

Installs with the common BSA threaded bottom bracket socket-style, 16-notch tools such as the classic Shimano TL-FC33, Park Tools BBT-69.2, and many others.

Do not use open end wrench-style tools because they will slip and mar the finish, and let's face it, that ain't pro. Check out our bicycle parts and kits to find the correct installation tool for your threaded bottom brackets.

ATTENTION: Always "chase and face" your frame bottom bracket shell before installation. Threads must be absolutely clean and clear of debris. Frame bottom bracket shell must be faced to 68mm for English.

Not compatible with any "BB30 Only" crank sets such as the Cannondale Si series, any Specialized FACT or S-Works crank, or any other short-pattern spindle 30mm crank set.

TECHNICAL SPECIFICATIONS
Weight: WS2: 71g | CERAMITECH: 73g | ABEC-7 SS: 76g
Frame Width: BSA 68mm English
Frame Diameter: 1.37 x 24tpi English
Spindle Diameter: 30mm

BSA ENGLISH THREADED SHIMANO ROAD BOTTOM BRACKET
BENG-SH-RD-BLK-ASMCT

These BBInfinite Threaded Bottom Bracket Cups work with all Shimano HollowTech road cranksets on the market, from Tiagra to Dura Ace.

This road bike bottom bracket features alloy cups that are MilSpec MIL-A-8625 Type II anodized for extreme durability.

Polymer labyrinth seal bearing covers with integrated bushings keep out dirt and debris while isolating the steel bearing races from the steel spindle, halting creaks, corrosion, and accelerated wear of the crank spindle itself.

The external cup bottom bracket installs with common socket-style, 16-notch tools such as the classic Shimano TL-FC33, Park Tools BBT-69.2, and many others.

Take a look at this threaded GXP bottom bracket cup for road bikes for an option that is compatible with Sram, Cobb, and Quarg cranksets.

TECHNICAL SPECIFICATIONS
Weight: WS2: 88g | CERAMITECH: 89g | ABEC-7 SS: 91g
Frame Width: BSA 68mm English
Frame Diameter: 1.37 x 24tpi English
Spindle Diameter: 24mm

ABOUT OUR BEARING CHOICES:

Ceramitech Bearings: Our Si3n4 hybrid ceramic bearings feature ultra-spherical silicon nitride balls matched to SAE 52100 chrome steel bearing races that have been processed with additional heat treatment and polishing steps.

The result is a hybrid-ceramic bearing that lasts longer than any steel bearing with spin performance no steel bearing can rival. We’re so confident in the durability of our Ceramitech bearings.

These bearings feature mid-contact seals for extreme performance and endurance. Each bearing comes lubricated with Kluber Isoflex Topas NB52.
